Is a native, or bare-metal, that allows multiple distinct virtual machines (referred to as domains) to share a single physical machine. As the highest privilege process on the system, Xen is responsible for the distribution of processor and memory resources between guest domains on the host. Other hardware resources such as network interfaces, disks, or direct PCI/USB devices are controlled by a privileged domain known as domain-0 (dom0).
Mac OSX for XenServer Mac OSX for XenServer. So no idea about how well it works or if the good PV drivers will be available. OSX is not considered a major target (it's even behind Dragonfly) so support is nominal. Reply Quote 0. I believe it still has to be virtualized on mac hardware. Well of course, that's a given. No exception to that. Oct 17, 2011 Xen 4.0 is supposed to be able to use Citrix’s WHQL certified Windows paravirtualization drivers. Their advantage over the GPLPV drivers is that they are code-signed, meaning they run on 64-bit Windows without disabling some of Windows’ security features.
From its inception Xen has focused on the approach to hypervisor design. As a result, Xen guests or unprivileged domains (domU) are typically aware of the hypervisor and their status as guests. The base system, Domain-0, must have inherent Xen support, however, unmodified domU guests are supported on hardware which implements Intel (VT-x) or AMD (SVM) virtualization technology. User $ grep -color -E 'vmx svm' /proc/cpuinfo Unfortunately motherboard manufacturers often explicitly disable these virtualization extensions via or UEFI settings. If you don't see support listed check your BIOS/UEFI configuration for flags related to virtualization.
Rebuilding the Gentoo installation? A dramatic change that might be necessary on 32-bit systems is to rebuild the entire Gentoo installation with a different CFLAGS setting. Guest operating systems running under Xen might otherwise see major performance degradation. If you, however, are planning on checking out Xen rather than installing it for production use and are not terribly fond of rebuilding all programs, you can skip this step. In this case you will notice performance degradation but you will still be able to use Xen. Root # emerge -e @world If you boot your system using an initial ramdisk (initrd) you need to rebuild the initrd as well (which is best done by running all steps you would do when you rebuild your kernel). Kernel Next we'll build the Linux kernel with Xen support.

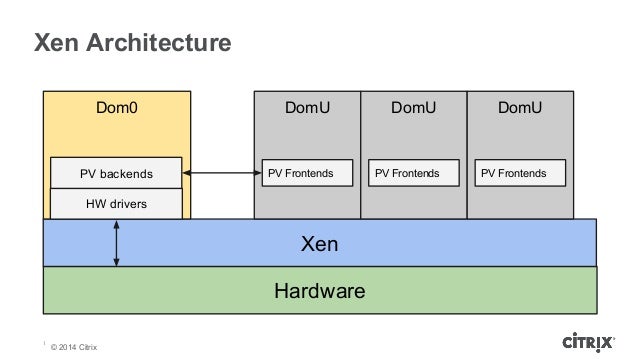

This kernel, whose sources are available at /usr/src/linux, will be our main running kernel (i.e. The one running domain 0). In the XEN section you'll find drivers for all kinds of input/output, each driver having a backend and frontend implementation available. For the domain 0 kernel you need to select the backend implementation: these are used by the other domains (who use the frontend drivers) to communicate directly with the hardware. However, you should be able to configure the kernel to provide support for both frontend (guest) and backend (host) drivers.
If you're wondering about networking: each interface in a domain has a point-to-point link to an interface on domain 0 (called vifX.Y where X is the domain number and Y the Yth interface of that domain), so you can configure your network the way you want (bridging, NAT, etc.) Enable general Xen support. Build the C libxenapi bindings local Enable the Flask XSM module from NSA local Enable support for hardware based virtualization (VT-x,AMD-v) local Enable support for the ocaml language local Enable support to boot UEFI guest vm, needed by hvm local Enable pam support local Install the pygrub boot loader local Add optional support/bindings for the Python language global Enable IOEMU support via the use of qemu-dm local Build the old qemu traditional device model (useful only if you cannot change to the new device model e.g.
Windows VMs) local Enable support for running domain U console in an app-misc/screen session local Build static versions of dynamic libraries as well global Using app-emulation/qemu instead of the bundled one local Using sys-firmware/seabios instead of the bundled one local. Note In case you need hardware virtualization, the hvm USE flag must be enabled for the xen-tools package.
Xen Pv Drivers For Mac
This flag can not be enabled on no-multilib installations. You need a multilib installation (and have a multilib profile selected) to enable the hvm USE flag. (You also need a CPU which supports hardware virtualization.) In case equery uses xen-tools does not list the hvm flag at all, or when emerge -a xen-tools shows this flag in brackets, the flag cannot be enabled (unless you figure out how to unmask it). Simply selecting a multilib profile on hosts that do not have a multilib installation is likely to give you error messages like about a missing stub-32.h when the xen-tools package is compiled, and emerging the package fails. You may need to re-install the host to a multilib installation then.
(32bit support in the kernel is not required.) Installation Emerge Xen will automatically deploy the compiled, boot-able hypervisor in /boot. If you have a separate ensure that it is mounted. Root # emerge -ask app-emulation/xen app-emulation/xen-tools Once the installation process completes /boot/xen.gz should be present. Performance tuning When configuring a host with a significant amount of memory it is beneficial to fix the allocated to dom0 and disable ballooning functionality. This ensures Xen and the dom0 operating system are able to build working structures based on the memory available at boot-time and have their assumptions hold throughout operation.
Additionally, in the event that a large number of guests are created, dom0 is explicitly protected from external memory pressure. In a GRUB2 environment the following directive assigns 1 GiB of memory to the dom0 guest. FILE /etc/default/grub GRUB2 Limit dom0 Memory GRUBCMDLINEXENDEFAULT='dom0mem=1024M,max:1024M' Ballooning should also be disabled by setting autoballoon to either 'off' or 'auto' in /etc/xen/xl.conf. Further detail on this topic and other related tuning suggestions can be found on the article on the Xen wiki. Runlevel In order for your new Xen environment to function correctly a number of daemons must be started. The following table provides a brief overview of each daemon and its function. Init Script Required Description xencommons Yes This daemon ensures all Xen related kernel modules are loaded in a dom0 system.
Additionally, in dom0 and domU pvops systems it mounts /proc/xen as type xenfs. Xenconsoled Yes Manages xl console sessions between dom0 and domU guests. Xendomains No Automatically starts all domU configuration files found in /etc/xen/auto/. Xenstored Yes Manages both disk and network I/O configuration and operations between the dom0 environment and other domU guests. Probably kills the dom0 environment or Xen in general if it becomes unresponsive for too long. It looks like this may have been removed xenqemudev? Facilitates QEMU based disks for Xen guests.
This comment is incomplete. FILE /etc/default/grub Setting the softlevel # Replace the default runlevel with 'xen' GRUBCMDLINELINUXXENREPLACEDEFAULT='softlevel=xen' Bootloader In order for Xen to be the highest privilege process it must be the initial boot target, however, it must also subsequently boot the dom0 kernel. Default: GRUB2 provides auto-configuration scripts through grub-mkconfig which will generate the appropriate settings based on the kernel.config. Convert m4v to mp4 freeware. If the scripts detect Xen dom0 options they will append Xen hypervisor boot lines to the grub menu.
Note that for this to function correctly the kernel config file must be located in one of the following directories with a suffix matching the desired kernel: Directory File Prefix Example /etc/kernels/ kernel-config-. /etc/kernels/kernel-config-4.0.5-gentoo /boot config-. /boot/config-4.0.5-gentoo The example column above assumes a kernel named /boot/kernel-4.0.5-gentoo. The following variables in /etc/default/grub are the most common ones to set to control how GRUB2 will function: Variable Explanation GRUBCMDLINEXEN Extra parameters to be passed on the Xen command line for all Xen menu entries. For instance, to have a timestamped Xen dmesg, users will need to add GRUBCMDLINEXEN='consoletimestamps=boot'. GRUBCMDLINEXENDEFAULT Parameters to be passed on the Xen command line for non-recovery Xen menu entries.
GRUBCMDLINELINUXXENREPLACEDEFAULT Overrides the GRUBCMDLINELINUXDEFAULT variable from the above Linux section for Xen boot lines only. Users may prefer to start a specific softlevel for xen via GRUBCMDLINELINUXXENREPLACEDEFAULT='softlevel=xen' For a more complete list, please refer to the sub-page. Now update the grub configuration file in the boot directory.
Device Drivers - Xen driver support -. Xen memory balloon driver. Scrub pages before returning them to system Xen /dev/xen/evtchn device Xen filesystem. Create compatibility mount point /proc/xen. Create xen entries under /sys/hypervisor userspace grant access device driver User-space grant reference allocator driver Xen ACPI processor. Xen platform mcelog Creating the domain disks For best performance, it is best to dedicate a partition (or logical volume) to a domain rather than a file based filesystem. However, if you are going to use Xen primarily for tests using a file based filesystem does have its advantages (especially regarding maintenance).
Xen Pv Drivers For Mac Download
You can create a file based filesystem using dd and mke2fs (or any other file system creation tool). For instance, to create a 4 Gbyte ext4 filesystem. Root # xl create /mnt/data/xen/gentoo -c The domain would be booted inside the terminal in which you executed the command. However, in our case, the disk image is empty so the domain won't boot up in anything useful. To fix this, you can loop-mount the image and install Gentoo as you're used to. If you want to disconnect from the domain, press Ctrl+.
You can always reconnect to the domains' console using xl console gentoo. However, there is only one console per domain, so only use it when you can't access the domain otherwise (for instance, through SSH). If you are missing login prompt on the console, make sure you have entries like this in your inittab files on dom0 and domU pointing to /dev/hvc0. Device Drivers - Generic Driver Options - -.- Maintain a devtmpfs filesystem to mount at /dev. Automount devtmpfs at /dev, after the kernel mounted the rootfs Networking on domains Introduction Xen works best when using a bridged mode network configuration. This means that your default network interface on the administrative domain becomes a bridge which accepts connections to the virtual domains as well as to the IP address your administrative domain has. Bridged interfaces Create a bridge interface by creating a new link to the networking init script as provided by Gentoo.
# eth0 should NOT have an ip configured configeth0 = 'null' # configure bridge to replace eth0 on dom0. Make sure the netmask for the bridge includes ip addresses of all your domUs! Bridgebr0 = 'eth0' configbr0 = '192.168.XX.XX netmask 255.255.0.0 brd 192.168.255.255' routesbr0 = 'default via 192.168.XX.XX' macbr0 = '00:16:3e:5b:XX:XX' # bridge options to make interface come up immediately bridgestpstatebr0 = '0' bridgeforwarddelaybr0 = '0' bridgehellotimebr0 = '1000' rcnetbr0need = 'net.eth0' rcnetbr0provide = '!net' Alternatively the bridge may request IP information from DHCP. Note You have to do it after each reboot, so use e.g. /etc/crontab to make it permanent. Troubleshooting Unable to passthrough USB mouse and keyboard to HVM (Windows 7) domU in Xen 4.7.3 If using the latest stable version of Xen (i.e. App-emulation/xen-4.7.3), you find yourself unable to passthrough an emulated USB device (in other words, you cannot use a mouse and keyboard in a HVM windows guest domU OS), note that QEMU-emulated USB controllers are not present in Xen 4.7.3.
Observe that the emulated USB controller (a.k.a. Usbctrl='type=devicemodel') is absent from the Xen 4.7 official documentation. In order to use a USB keyboard and mouse in a Win7 domU:.
If your setup is capable of supporting it, consider passing through the entire USB host controller using. Note that this will likely require some IOMMU/VT-d and will depend on how your motherboard and chipset were designed; or.
Unmask Xen 4.8.2 in portage and upgrade to it, following which USB mouse and keyboard passthrough may be achieved with the following changes to domU's config file: Assuming that the Xen configs are located, as above, at /mnt/data/xen/configs, and that the HVM Windows 7 config file is called 'win7'. Root # dmesg Jan 10 12:15:19 domU kernel: xen:granttable: xen/grant-table: maxgrantframes reached cur=32 extra=1 limit=32 gnttabfreecount=0 reqentries=24 As both xen-netfront and xen-blkfront support multi-queue, they would consume a lot of grant table references when there are many paravirtual devices and vcpus assigned to guest. Guest domU might panic or hang due to grant allocation failure when nrgrantframes in guest has reached its max value. You can use the xen-diag tool from Xen 4.10 to see if you're reaching the limit with your domUs. Root # xen-diag gnttabquerysize 1 domid=1: nrframes=13, maxnrframes=32 The default limit for Xen 4.9 is 32, Xen 4.10 increased the limit to 64. You can change it via the xen 'gnttabmaxframes' command line options.
A novell support page recommended to set it to 256. You can add the xen-diag tool to Xen 4.9: More information: Xen dom0 fails to boot on hardened You'll probably see 'panic on CPU X ndouble fault - system shutdown' messages when using the hardened profile ( ). Until this is resolved, please use the default profiles (rebuilding libtool/gcc/binutils/glibc and xen/xen-tools afterwards). See also. — a generic, open source hardware emulator and virtualization suite. External resources.
A graphical tool for administering virtual machines. Nice introduction although written for debian.
An installation guide, somewhat closer to Gentoo This page is based on a document formerly found on our main website. The following people contributed to the original document: They are listed here because wiki history does not allow for any external attribution.
